PS2 gamepad wireless retrofit hack

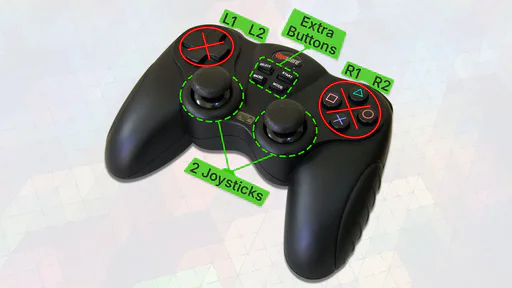

In January 2009, I needed a reliable wireless control interface for my differential drive robot. Rather than designing one from parts, I repurposed a $10 Gigaware PS2-compatible gamepad from RadioShack. I removed the cable and PCB to expose the raw inputs: two dual-axis joysticks (four 5.2kΩ potentiometers), eight action buttons, and two LEDs.

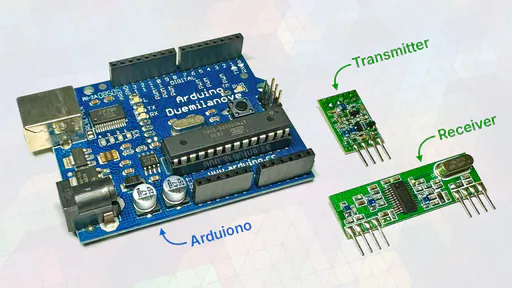

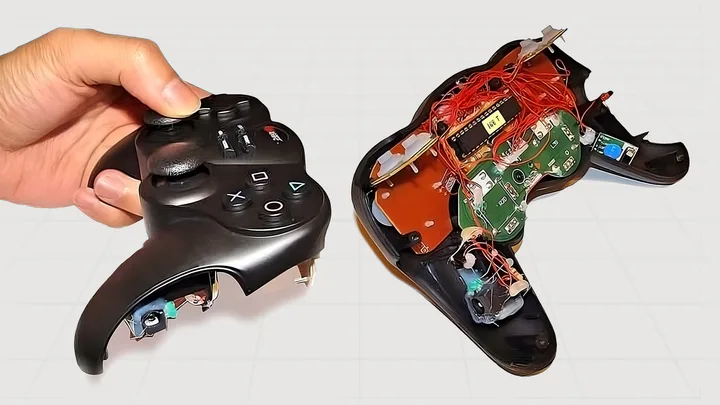

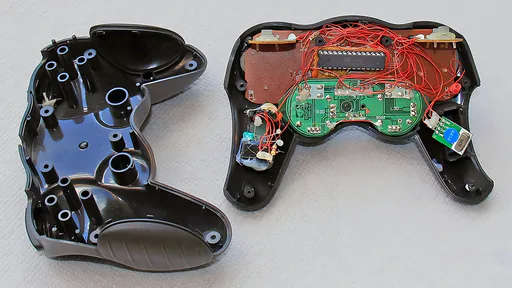

I opened the gamepad, traced every signal path, and soldered wire-wrap leads to each one. The four analog axes connected to an Arduino Duemilanove on analog inputs A0 through A3 for 10-bit ADC sampling. Eight buttons and two LEDs used digital I/O pins. The cramped shell limited me to 8 of the original 16 buttons, which was enough for directional control, speed, and mode switching.

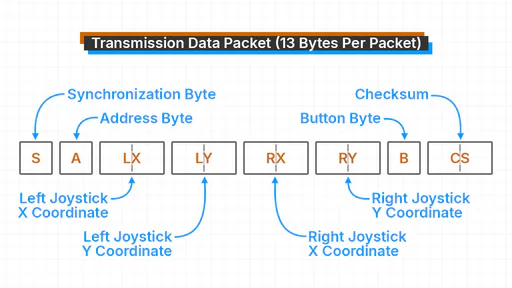

Wireless communication used 433 MHz TX/RX RF modules. The packet structure I designed was 13 bytes: a sync byte, an address byte, 8 bytes for joystick coordinates (four int16 values), a bit-packed button byte, and a 16-bit checksum. That covered the full robot state in a single frame at approximately 23 packets per second.

Four-byte test packets worked without issue. Scaling to 13 bytes caused over 50% loss. The most likely culprit was UART buffer overflow under software serial at 2400 bps. The diagnostic pointed clearly to hardware UART and Manchester encoding as the right solution for a future iteration. Even with that limitation, the system delivered full wireless teleoperation with analog joystick precision using nothing but repurposed consumer hardware and open-source tools.
